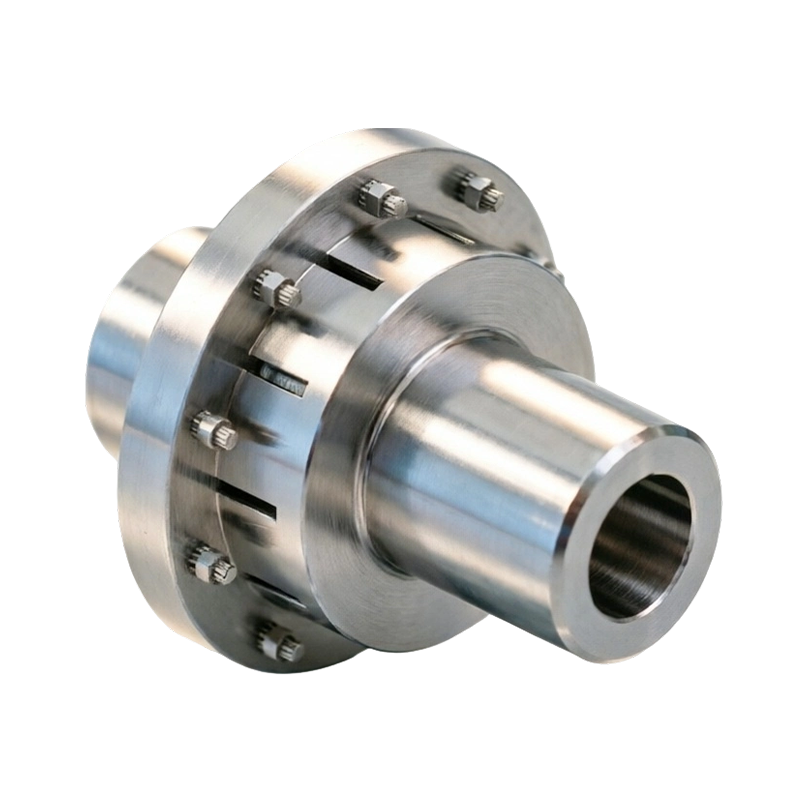

LMD(MLZ) Spider Elastic Coupling with Intermediate Shaft

The LMD(MLZ) elastic plum blossom coupling is an innovation based on the traditional plum blossom coupling, featuring a transition coupling design that eliminates the need to move the half-couplings axially when replacing the elastic element. This design optimizes the coupling’s maintainability and adaptability, significantly enhancing the operational efficiency and ease of maintenance of the equipment. Its core advantage lies in its simple and compact structure, typically consisting of two half-couplings with protruding teeth and a plum blossom-shaped elastic element. The torque is transmitted through the close engagement of the elastic element and the teeth, while the deformation of the elastic element provides effective vibration damping, cushioning, and compensation for shaft misalignment.
The LMD elastic plum blossom coupling differs from traditional designs in its connection method, offering greater flexibility and convenience during installation, making it adaptable to various installation environments and operating conditions. Whether used in applications requiring high precision or in systems with frequent starts and stops, the LMD coupling operates stably and efficiently. It is particularly suitable for equipment in industries such as metallurgy, mining, and textiles, where frequent startups and large load fluctuations occur. With its precise structural design, the LMD coupling can withstand large shock loads, protecting core components like motors and gearboxes and reducing equipment failure rates.
