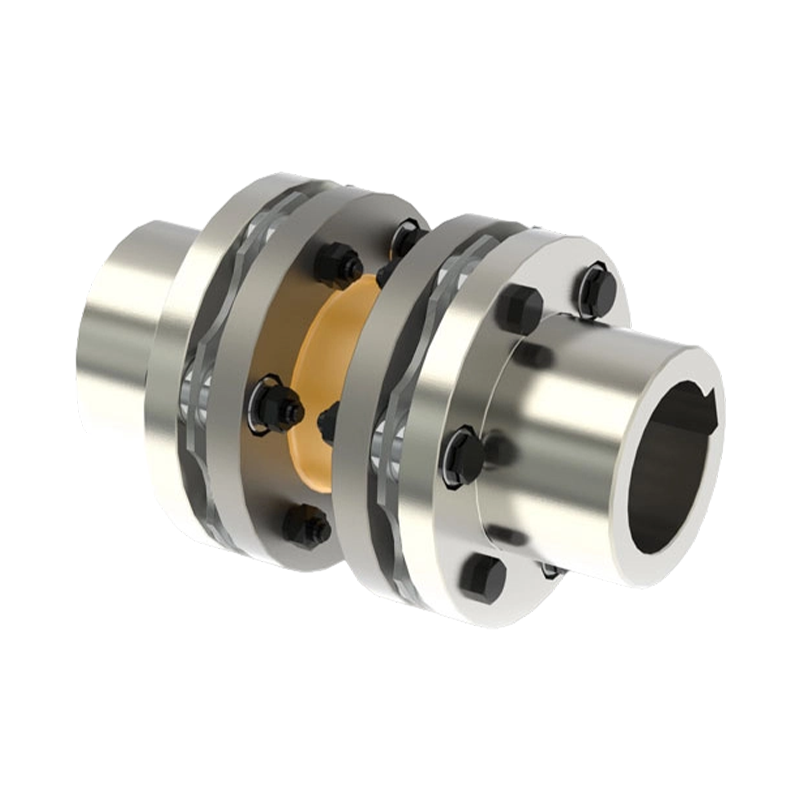

JMIJ Diaphragm Coupling with Intermediate Shaft

The JMIJ Series Disc Coupling is a high-performance metal disc coupling that adopts a unique "double-disc + intermediate shaft" structural design, specifically created for long-distance and precise transmission. The core of this design lies in the double-disc with an intermediate shaft, which allows the JMIJ coupling to excel in transmission systems that require large compensation and high precision.
Compared to traditional single-disc couplings, the JMIJ disc coupling features a more stable and efficient design. It consists of two sets of disc components, two hubs, and an intermediate sleeve. The two hubs are securely connected to the driving and driven shafts via keyways or shrink-fit adapters, ensuring a firm attachment. The intermediate sleeve, as an independent short shaft component, connects the two disc components, forming an effective torque transmission path. Power is transmitted from the driving shaft to the first set of discs, then through the intermediate sleeve to the second set of discs, and finally, torque is transmitted to the driven shaft. This process ensures efficient and stable transmission, providing consistent operation of industrial equipment.
Another important feature of the JMIJ disc coupling is its "lubrication-free" and "wear-free" properties, which eliminate the wear and lubrication issues commonly found in traditional gear couplings, thus reducing maintenance costs. This coupling also boasts excellent resistance to harsh environmental conditions, enabling stable operation in high temperatures, vibrations, and extreme weather conditions, making it suitable for a variety of demanding industrial applications.
