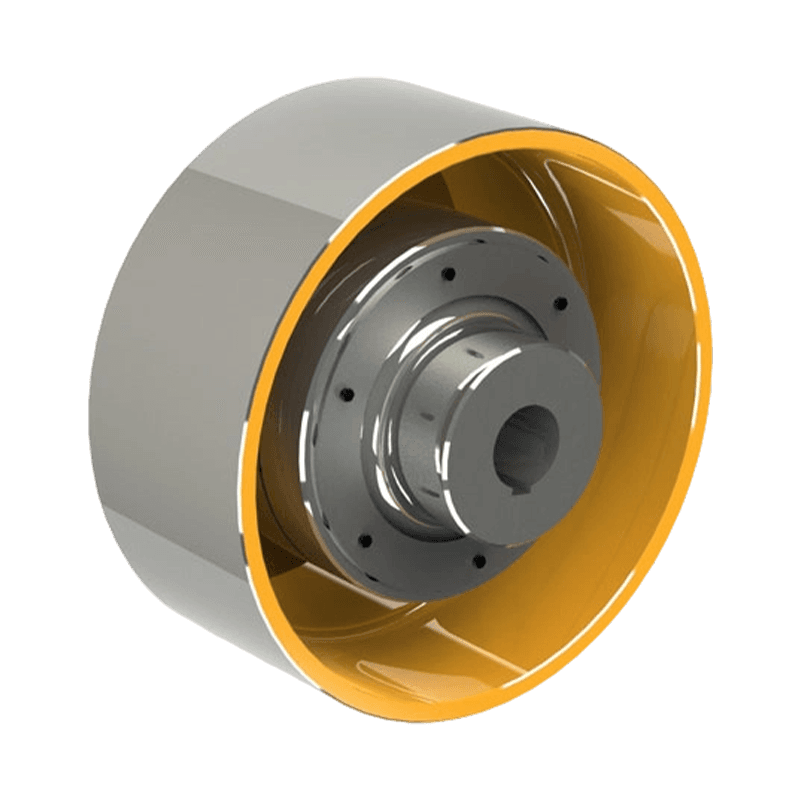

LXZ(HLL) Elastic Pin Coupling with Brake Wheel

The LXZ(HLL) elastic pin coupling with brake wheel combines both transmission and braking functions, specifically designed for applications requiring frequent starts, stops, and safe braking. This coupling plays a crucial role in industrial drive systems, as it not only transmits torque and compensates for shaft misalignment, but also integrates braking functionality to provide smooth and rapid stopping while maintaining stable operation. Although both the LXZ and HLL models are from the same series, they differ in terms of load capacity and adaptability, providing precise solutions for various operational needs.
The LXZ model is considered an enhanced version of the HLL model. While maintaining the core structure, the LXZ coupling improves its load-bearing capacity and operational adaptability by optimizing the brake wheel material and elastic pin specifications. The brake wheel is made from high-strength steel, which undergoes a special heat treatment process to enhance its wear resistance and impact resistance, making it more suitable for frequent braking demands. Additionally, the size and distribution of the elastic pins have been optimized, improving torque transmission capability compared to the HLL model. This makes the LXZ model particularly well-suited for heavy-duty, high-frequency start-stop applications.
In applications such as mining hoists, heavy-duty conveyors, and equipment that need to withstand large shock loads, the LXZ coupling excels due to its stable braking performance and fatigue resistance. It effectively extends the service life of the drive system, improving overall system reliability. Whether responding to large shock loads or frequent start-stop operations, the LXZ coupling provides excellent transmission and braking effects, ensuring safe and efficient operation of the equipment.
