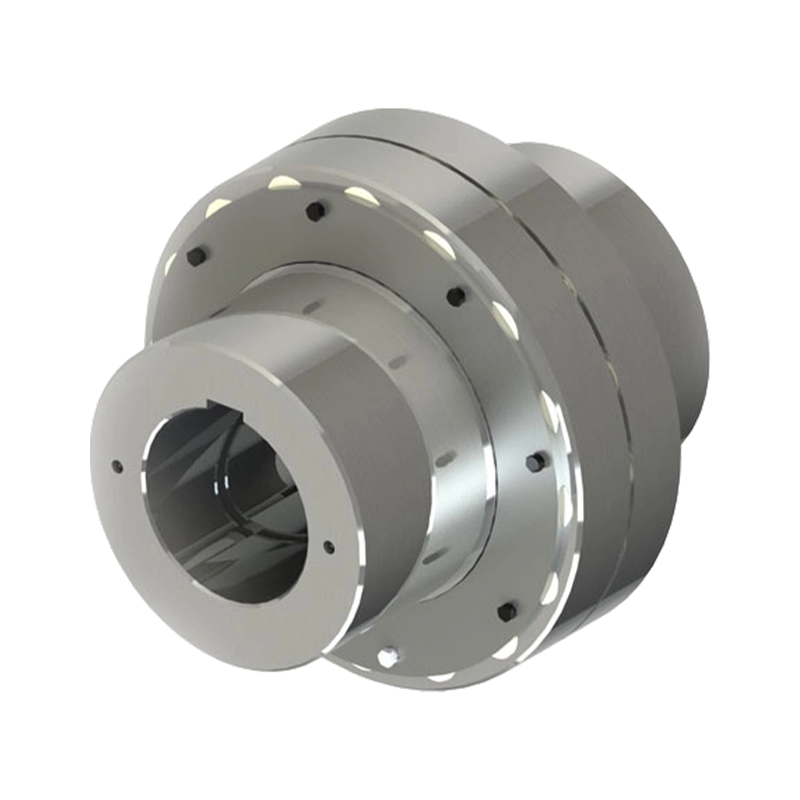

LX(HL) Elastic Pin Coupling

The LX(HL) elastic pin coupling is the basic model in this series, widely used in various medium and low-speed transmission applications, playing a key role in industrial mechanical drive systems. As a core component for connecting two shafts and transmitting torque, the elastic pin coupling achieves excellent vibration damping and shaft misalignment compensation through its unique non-metallic elastic element, ensuring stable and reliable equipment operation. Both the LX and HL types inherit the core advantages of the elastic pin coupling, while offering precise differentiation in performance parameters and application ranges to meet the specific transmission requirements of different operating scenarios.
The LX-type elastic pin coupling is suitable for medium and low-speed applications with higher torque demands, noticeable axial movement, and moderate transmission accuracy requirements, such as the drive systems of standard fans, pumps, etc. With a large torque transmission range and good axial compensation capabilities, it meets basic transmission needs while providing excellent cost-performance value. In contrast, the HL-type coupling is better suited for scenarios requiring higher transmission accuracy, high-low speed switching, or where braking and current corrosion risks are present, such as in metallurgical auxiliary equipment, agricultural harvesters, and chemical pumps. Its standardized design and versatile adaptability make it more advantageous for handling complex working conditions.
This coupling features simple maintenance and long-lasting durability. With nylon pins that are cost-effective and easy to replace, the overall service life of the coupling is 3-5 years, effectively reducing equipment maintenance costs. Thanks to its efficient transmission, precise compensation, and excellent economic performance, the LX(HL) elastic pin coupling has become an ideal choice for transmission systems in various industries, widely used in the smooth operation of fans, pumps, metallurgy, chemicals, and other industrial equipment.
