LLA Type Tyre Coupling

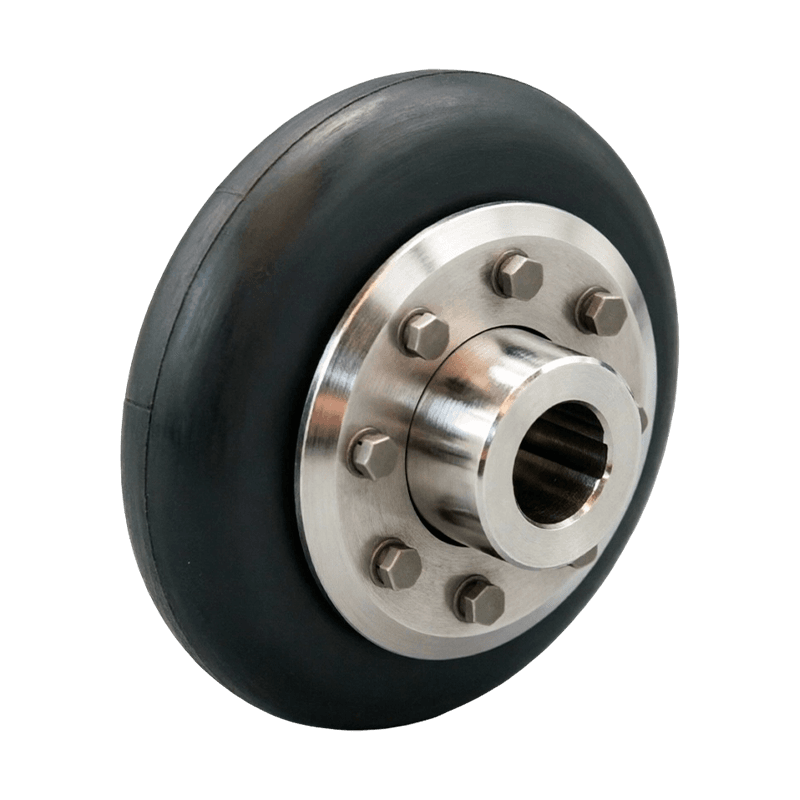

The LLA type tyre coupling is a high-performance elastic coupling specifically designed for industrial conditions subject to moisture, dust, impact, frequent vibration, variable forward and reverse rotation, and frequent starting. Its structural design is simple and rational, mainly consisting of a tyre body, metal pressure plates, connecting flanges, and fastening bolts as core components. Some models can be equipped with a protective cover as required, to prevent foreign matter from entering and protect the rubber element from external damage. The tyre body, as the core elastic element of the coupling, is made of high-strength rubber or polyurethane material; some products have nylon cord or nylon fabric reinforcement embedded internally, firmly bonded to the metal connecting parts through a vulcanization process, achieving excellent elastic performance and superior load-bearing capacity.
Unlike other types of tyre couplings, the LLA type adopts an open tyre body design. The metal pressure plates are typically of a two-piece construction, clamping and fixing both sides of the tyre body to the coupling halves via fastening bolts. This makes tyre body replacement extremely convenient — there is no need to disassemble the entire transmission system; simply loosening the pressure plate bolts allows the elastic element to be replaced, improving equipment maintenance efficiency. Its performance characteristics are outstanding: the elastic deformation of the tyre body effectively absorbs impact energy generated during equipment operation, mitigates vibration transmission, reduces noise and mechanical wear, and protects core equipment such as motors and speed reducers from impact damage.
The LLA type tyre coupling has excellent overall displacement compensation capability, effectively compensating for axial, radial, and angular misalignment, avoiding additional stress caused by installation errors, shaft system deformation, or temperature variation, and ensuring smooth operation of the transmission system. For special requirements, non-standard couplings can be customized. Under overload conditions, the snap jaws of the coupling halves provide protection, effectively preventing serious accidents. With its high cushioning performance, convenient maintenance, and reliable durability, this coupling has become an indispensable key component in industrial transmission systems.
