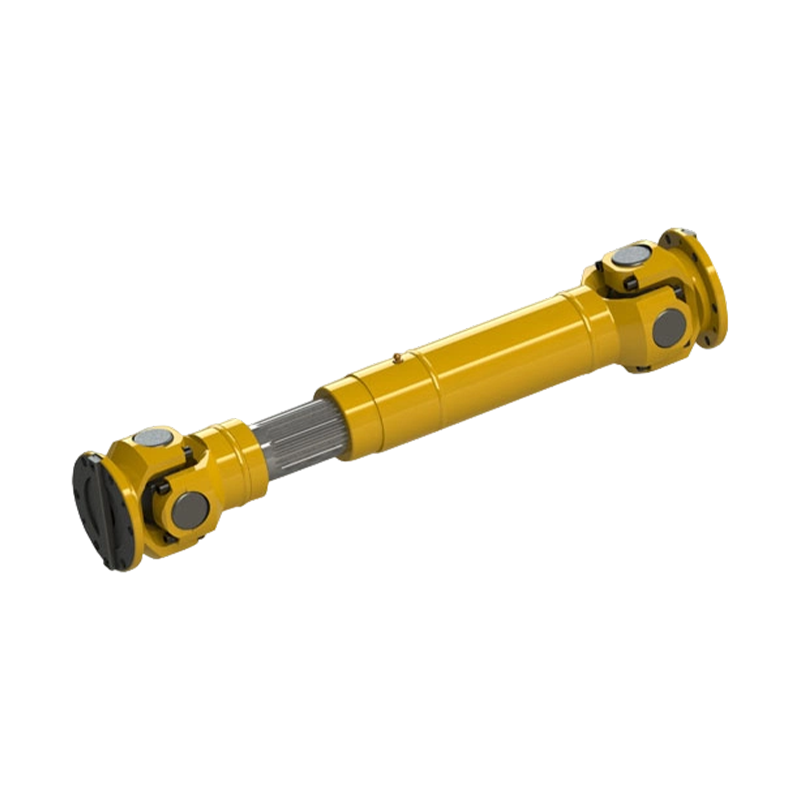

SWP-A Telescopic Long Type Universal Coupling

The SWP-A Telescopic Long Universal Coupling is a mechanical transmission device that combines a cross universal joint with telescopic functionality, specifically designed to address radial and angular misalignment, as well as axial displacement compensation in shaft systems. This coupling improves upon the traditional SWP series universal coupling by incorporating a telescopic feature, further expanding its application in industries such as metallurgical machinery, construction vehicles, and ship propulsion, making it especially suitable for efficient power transmission in complex operating conditions.
The core structure of the SWP-A coupling includes the cross shaft assembly, telescopic spline set, bearing sealing system, and flange connections. The cross shaft assembly is forged from high-quality alloy steel, treated with carburizing and precision grinding processes to ensure high torque transmission capacity and long service life. The telescopic spline set features a specially designed involute spline structure that allows for axial displacement while maintaining stable torque transmission, effectively solving axial misalignment caused by equipment vibration, thermal expansion, or shaft deviations.
The SWP-A coupling is equipped with a multi-stage bearing sealing system that effectively prevents grease leakage and the ingress of external contaminants, ensuring long-term lubrication efficiency and reducing maintenance costs. The flange connection is designed to be standardized, simplifying the installation and maintenance processes, making the product ideal for quick connections and disconnections in various industrial environments.
