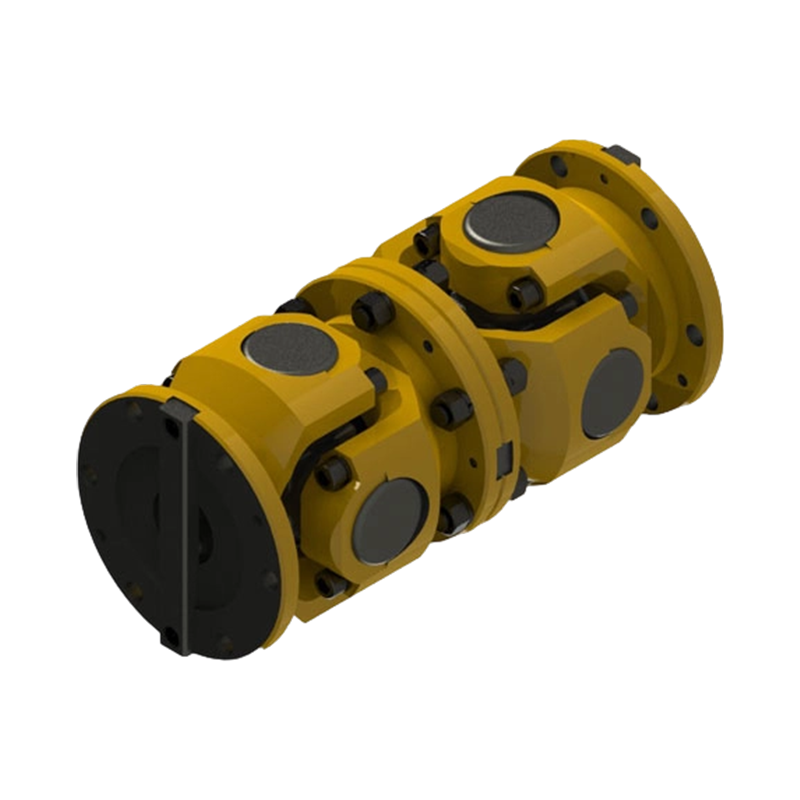

SWP-C Non-telescopic Short Type Universal Coupling

The SWP-C Non-Telescopic Short Universal Coupling is a high-performance mechanical transmission component, classified as a compact product in the cross universal joint series. Based on the excellent performance of the traditional cross universal joint, this coupling achieves a short design through structural optimization, making it particularly suitable for transmission systems with limited installation space while still providing powerful torque transmission in confined areas.
The core structure of the SWP-C coupling consists of a flange yoke forged from high-strength alloy steel, a precision-machined cross assembly, a short connecting sleeve, and an efficient sealing system. The cross assembly includes the cross shaft, needle bearings, and sealing devices, which serve as the core moving components, ensuring efficient and stable power transmission. The special design of the short connecting sleeve reduces the overall length by approximately 20%-30%, saving space while maintaining transmission efficiency.
This coupling features an integral flange design, which facilitates quick installation, and its optimized bearing structure effectively reduces radial play, ensuring precise torque transmission. The multi-stage sealing system effectively prevents grease leakage and the ingress of external contaminants, extending service life and reducing maintenance requirements. The precision manufacturing and optimized design of the SWP-C non-telescopic short universal coupling provide excellent performance with low backlash, high torque density, and good dynamic balance, making it especially suitable for medium to high-speed operations and long-term efficient running equipment.
